Table Type Vickers Hardness Tester HV-10,HV-10Z Digital Vickers Hardness Meter

  • 1
  • 2

Brand Name : RAYTECH

Model Number : HV-10 / HV-10Z

Certification : ISO CE

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500units per month

Delivery Time : 5~8 working days

Packaging Details : Standard Export Carton

Product Name : Table Type Vickers Hardness Tester HV-10,HV-10Z Digital Vickers Hardness Meter

Test Force : 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf

Test Range : 1HV~2967HV

Loading Method : Automatic (Loading/Dwell/Unloading)

Objective : 10× 20×

Resolution : 0.5μm

Contact Now

Table Type Vickers Hardness Tester HV-10,HV-10Z Digital

Vickers Hardness Meter

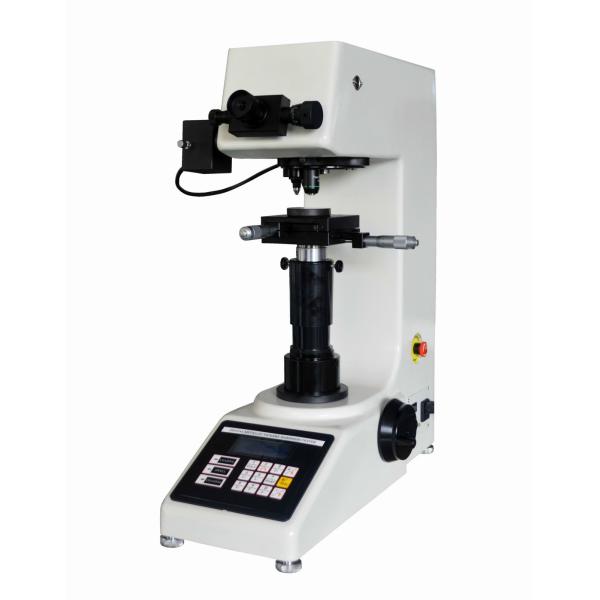

Table Type Vickers Hardness Tester HV-10,HV-10Z Digital Vickers Hardness Meter

Main Function:

HV-10 / HV-10Z Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. It adopts load cell control system, improves the precision of the test force and the repeatability and stability of the indicating value. It can shows the test force, dwell time, test numbers on the screen, only need to input the diagonal of the indentation when operation, it can automatically get the hardness value and shows on the screen. It can be equipped with CCD image automatic measuring system.

Application range:

Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

Technical Specification:

Model HV-10 HV-10Z
Test Force kgf 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf
N 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N
Test Range 1HV~2967HV
Loading Method Automatic (Loading/Dwell/Unloading)
Shifting between Objective and Indenter Manual Shifting Automatic Shifting
Objective 10× (Observe),20× (Measure)
Eyepiece 10× Reading Microscope
Total Magnification 100× , 200×
Resolution 0.5μm
Dwell Time 0~60s
Light Source Halogen Lamp
X-Y Test Table Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. Height of Specimen 170mm
Throat 130mm
Power Supply AC220V,50Hz
Execute Standard ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2
Dimension 530×280×630mm,Packing Dimension: 620×450×740mm
Weight Net Weight: 35kg,Gross Weight: 47kg

Packing List:

Name Qty Name Qty
Instrument Main Body 1 set 10× Reading Microscope 1 pc
Diamond Vickers Indenter 1 pc 10×,20× Objective each 1 pc
Cross Test Table 1 pc Power Cable 1 pc
Horizontal Regulating Screw 4 pcs Level 1 pc
Fuse 1A 2 pcs Halogen Lamp 12V,15~20W 1 pc
Inner Hexagon Spanner 2.5mm 1 pc Screw Driver 1 pc
Hardness Block 700~800 HV1 1 pc Hardness Block 700~800 HV10 1 pc
Anti-dust Cover 1 pc Usage Instruction Manual 1 copy
